How to Cut Crown Molding Trim for Easy Installation
March 25, 2021
Share this
How to cut inside and outside corners with crown molding.
Crown molding installation is one of the hardest DIY jobs I've done over the years. This tutorial shares how to cut crown on your saw and save yourself some frustration!
First up, before I even begin -- please check out this crown molding jig that I found and now use. It is an absolute game changer and makes this process SO much easier!
OK...if you don't have have that jig or want to learn the tried and true way to cut crown on a miter saw, stay tuned!
Do you ever putt off attempting a DIY project (or any project!) because you've
convinced yourself that it will be super difficult? I've had that happen many
times over the years, but I find that if I do my research and just TRY...it's
never as bad as I think it will be. Most of the time it's the
easy projects that give me fits. ;)
Cutting and installing crown molding was one project I put off for years. I
mentioned years back that
I didn't know how to cope or cut crown
molding -- so I always used corner pieces like these when installing
crown:
The only issue with these is the cost -- they aren’t cheap.
Eventually I wanted a more streamlined look...so I forced myself to
learn how to install crown molding. When it comes to crown, you can cut it
on a miter saw, or use a coping saw to cut out the shape of the molding
so it fits snug into the other piece.
I do not cope well. :) I can do it on simpler trim like baseboards no
problem, but crown is much harder to cope in my opinion. Cutting and
installing crown molding really isn't that hard -- I promise. The key to
doing it correctly all comes down to how you place it on the saw to be
cut.

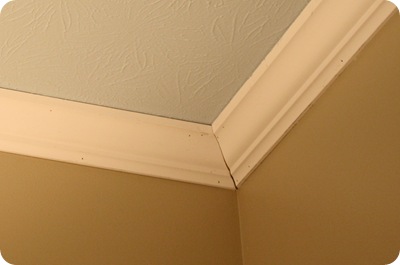

I've been slowly adding crown molding to the basement family room where I
recently finished the huge entertainment center:
This post may contain affiliate links for
your convenience.
See my policies and disclosure page for more information.
I STILL use the crown "jigs" I created out of scrap for myself years ago!
I've figured out along the way that there are a few tricks to cutting and
installing crown. First of all, it helps to have a compound miter saw. You
don't have to have one -- a miter box and saw
(like I used for years for my molding projects) will do just fine. It will
just take more strength and endurance to cut. ;)
Because crown is installed at an angle, cutting it is different than regular trim. You need to position it a certain way on the saw when cutting it.
Here are some pictures to help explain. (Stay tuned for examples of each cut I'm describing.) For an inside cut (an inside wall corner in a room), you want to make sure the front is facing into the saw.

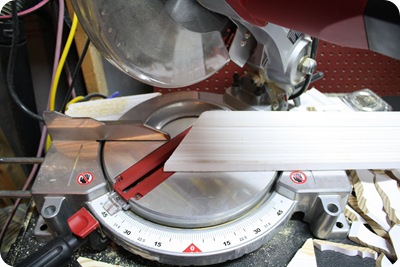

This molding is
set up for a cut that will be an inside corner, on the left side of the corner:
The front is facing into the saw, top on top, bottom of the crown molding is on the bottom.

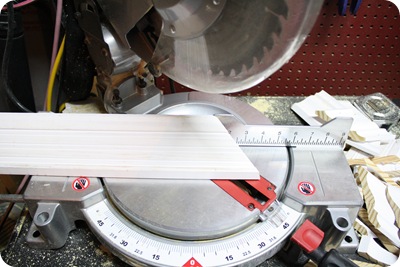

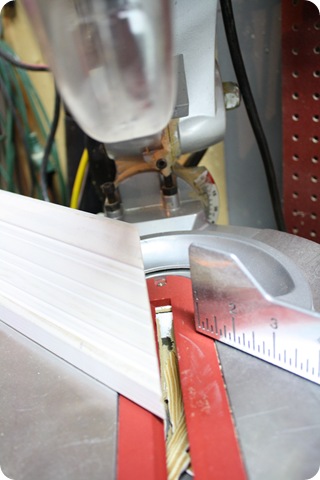

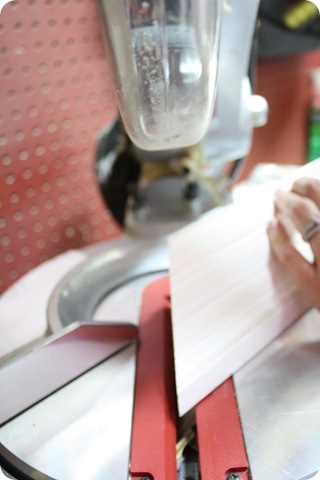

Here’s what it will look like on the saw:

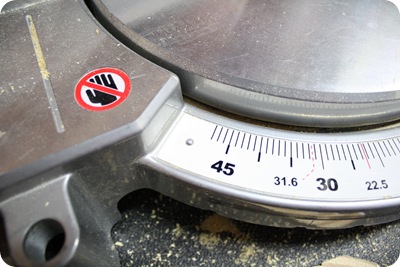

For a standard (inside) corner, you’ll want your saw blade set to a 45 degree angle:
You do the same thing for the other side of the corner -- here's what it looks like on the saw table for the right side of the corner:

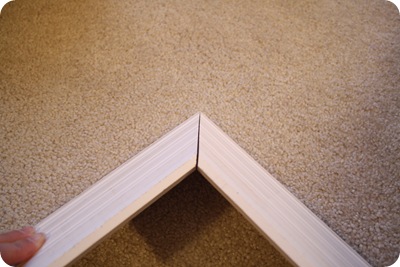

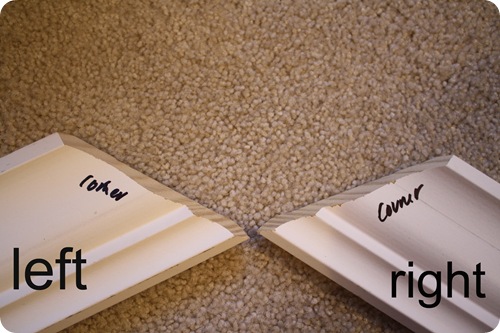

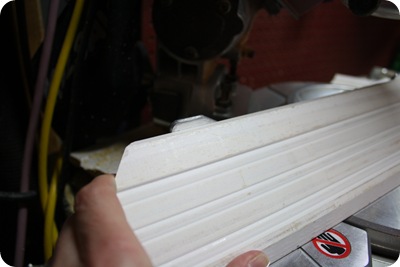

I know it can get confusing, so here's a visual of how the inside cuts look:

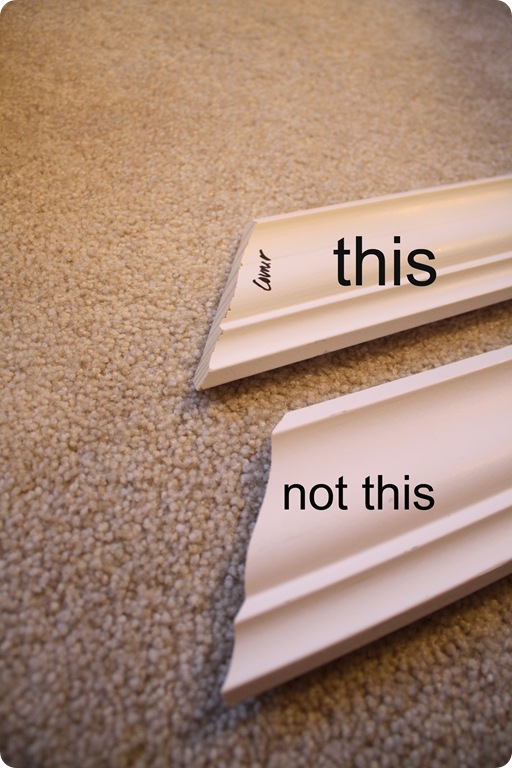

Notice you can see the edges of the miter cut wood? You want to see that, so when they go together up in the corner, they’ll meet up like this:
That’s the only tricky part, getting that angle right as you’re working around the room.
For these inside corners, you want the back of the molding to be the longer edge, not the
front:
Does that make sense? That part is huge!
Does that make sense? That part is huge!
For outside
cuts, you'll want to have the front facing you on the saw, but you'll need
to flip it -- so a left side cut will need to be flipped upside down so that
the length of the crown is on the left side of the saw, not the
right.

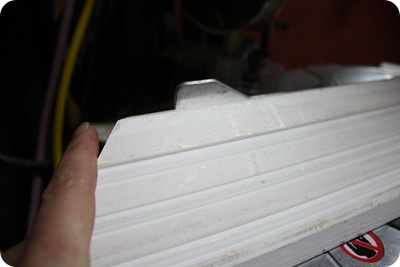

Here are a few more tips that make cutting crown go much easier! When you
place your crown against the saw, make sure the edges are flat, like
so:
If those are not flush your cut will not match up in the corner.
Also, it's helpful to mark a line you can match for every piece of crown
as you're working. I use a pencil to mark the height on the saw
fence:
You can see here that I've labeled the back of my example pieces as well
-- it can get confusing as you're cutting and these references really help
me! I've marked heights for a few different sizes of crown, that's why
there are a few lines on the fence.
I have kept my example "jigs" for years and pull them out to remind me how
to set up the cuts. Or, again...I highly recommend that crown cutting jig tool to make the perfect cuts easily.
If you have an angle different from the rest, you can use
this angle finder protractor
to figure it out:

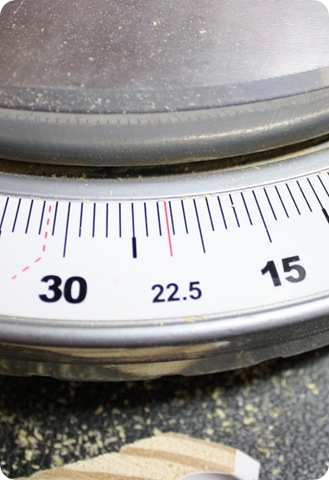

Most of the time any other angle in the wall is a 22.5 angle which is already set on most
saws:

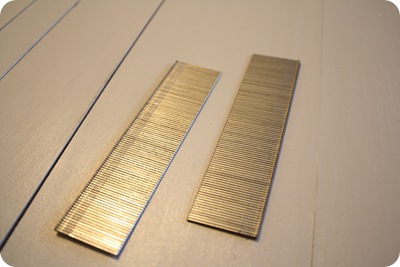

I highly recommend using a nail gun for crown molding installation.
Keep in mind that most walls are not completely straight and most corners are not built at exact 90 degree angles.
Wavy walls and out-of-square corners will create gaps most of the time -- but don't fret! This is why

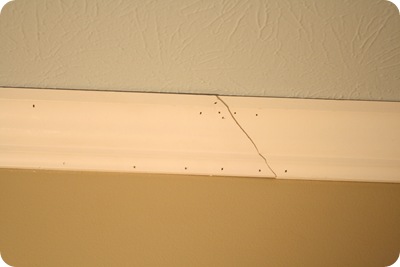

caulk is your BFF. It hides so many not-so-perfect spots. Here's the

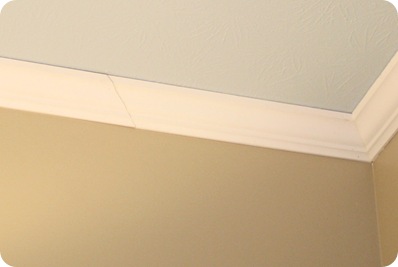

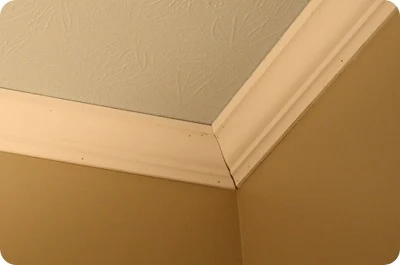

before with gaps and seams:
And the after after a bead of caulk:
(I hadn't touched up the angled part where they meet up when I took his
photo.)
Use a wet finger to swipe the excess caulk away. I love using this tip to prevent the caulk from spreading everywhere.

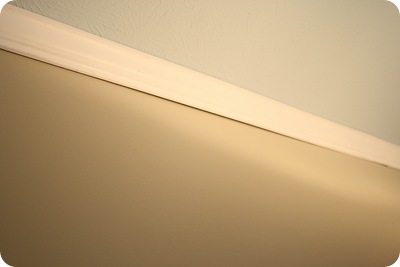

Also, sometimes the trim will bow out from the wall a bit at the top or
bottom:
If that bothers you, a line of caulk will make that disappear.
If your cuts are correct, installing crown isn't too bad at all -- you’ll
just need someone to help you hold up long lengths of molding as you nail them in. (I
keep eyeing this gadget that allows you to hang long crown pieces by yourself.)
I find it helpful to mark where my crown hits on the wall and ceiling as
I'm working around a room -- this ensures that I'm installing it at the
exact same angle as I go.
Make sure your last piece is installed at the same angle as your first piece so when you finish up they fit together perfectly.
Crown molding can be intimidating, but the trick is all in how you cut it!
Once you have that figured out, it will go more smoothly.

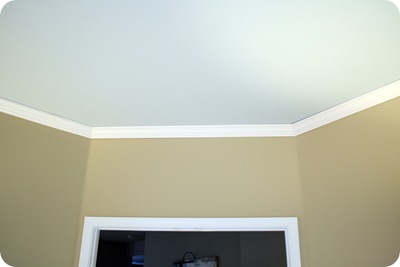

The elegant touch crown adds will never go out of style! It's a little
detail that makes a big difference in a space:
